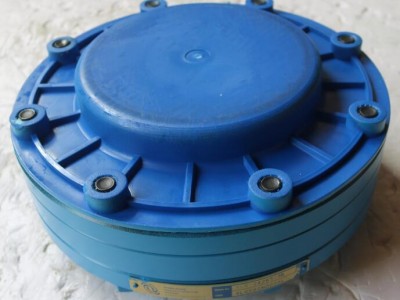

RENK軸承EFZLK22-225
：吳工 泉州
：1885 9564 765
：2781499592 q
RENK的歷史可以追溯到1873年，當時Johann Julius RENK在奧格斯堡的Lechviertel為齒輪的機械生產建立了一個小型機加工車間。1879年，這家年輕的公司搬到了Goggingen社區，直到今天RENK的總部仍在那里。公司于1897年改制為股份制公司，從1923年起，將公司整合到現在的MAN集團。
在2011年大眾汽車(Volkswagen AG)收購MAN SE的多數股權時，RENK也加入了大眾集團。今天，RENK已成為全球領先的高質量驅動技術供應商。該公司在奧格斯堡、萊茵河和漢諾威的分公司是主要的生產基地。
RENK的產品和服務一直以來都是根據客戶的需求量身定制的。絕對精確、承諾和速度是效率和行動能力的基本先決條件，尤其是在敏感的業務領域。這種對最高質量標準的承諾，使RENK集團在世界各地的每一家子公司和公司都與眾不同。作為合作伙伴，他們的靈活性、合作意愿和技術理解確保他們能夠與客戶交流并提供系統建議。多年來在四個戰略業務部門（汽車變速器Vehicle transmissions、專用齒輪裝置Special gear units、標準齒輪裝置Standard gear units、滑動軸承Slide bearings）RENK一直在定義標準和技術可行性。
RENK滑動軸承由德國漢諾威廠（RENK AG Hannover Plant）生產，與電動機相關的主要軸承型號有EF系列，EM系列，ER/EG系列，ZM系列。
無錫東元電機有限公司|WUXI TECO|無錫東元電機官網|東元電機|江西東元電機|青島東元精密機電|蘇州東元電機|上海東元德高電機|TECO-Westinghouse|JIANGXI TECO 無錫東元電機有限公司|WUXI TECO|無錫東元電機官網|東元電機|江西東元電機|青島東元精密機電|蘇州東元電機|上海東元德高電機|TECO-Westinghouse|JIANGXI TECO
無錫東元電機有限公司|WUXI TECO|無錫東元電機官網|東元電機|江西東元電機|青島東元精密機電|蘇州東元電機|上海東元德高電機|TECO-Westinghouse|JIANGXI TECO 無錫東元電機有限公司|WUXI TECO|無錫東元電機官網|東元電機|江西東元電機|青島東元精密機電|蘇州東元電機|上海東元德高電機|TECO-Westinghouse|JIANGXI TECO
RENK Slide Bearings (Hannover)
TYPE
SIZE
SHAFT mm
ER/EG
7~45
55~560
EG
56~112
475~1250
EF
7~45
55~560
EM
9~45
80~560
ZM
7
55~75
Technical data
Design: EM bearing
Construction:
Finned middle flange bearing acc. to DIN 31694 / ISO 11687-3
Size:
9 … 28, for shafts ? 80 … 355 mm
35 … 45, for shafts ? 300 … 560 mm (600 mm, without axial component)
Lubrication:
Self-lubricating (loose oil ring, fixed oil ring) or external lubrication
Cooling system:
Natural cooling, water cooling, or external cooling
Bore design:
Various bore designs as required, e.g. cylindrical bore, two-lobe bore, three-lobe bore, four-lobe bore, or radial tilting pad
Options:
Electric insulation, lubrication circulation system, hydrostatic jacking
Accessories:
Temperature monitoring with PT100, prepped for vibration/speed sensors
Technical data
Design: EF bearing
Construction:
Finned side flange-mounted bearing acc. to DIN 31693 / ISO 11687-2
Size:
9 … 28, for shafts ? 80 … 355 mm
35 … 45, for shafts ? 300 … 560 mm (600 mm)
Lubrication:
Self-lubricating (loose oil ring, fixed oil ring) or external lubrication
Cooling system:
Natural cooling, water cooling, or external cooling
Bore design:
Various bore designs as required, e.g. cylindrical bore, two-lobe bore, four-lobe bore, or radial tilting pad
Options:
Electric insulation, lubrication circulation system, hydrostatic jacking
Accessories:
Temperature monitoring with PT100, prepped for vibration/speed sensors
Technical data
Design: EG bearing
Construction:
Unfinned pedestal bearing acc. to DIN 31690 / ISO 11687-1
Size:
18 … 28, for shafts ? 160 … 355 mm
35 … 112, for shafts ? 300 … 1,250 mm
Design: ER bearing
Construction:
Finned pedestal bearing acc. to DIN 31690 / ISO 11687-1
Size:
9 … 28, for shafts ? 55 … 355 mm
35 … 45, for shafts ? 300 … 560 mm
Lubrication:
Self-lubricating (loose oil ring, fixed oil ring) or external lubrication
Cooling system:
Natural cooling, water cooling, or external cooling
Bore design:
Various bore designs as required, e.g. cylindrical bore, two-lobe bore, four-lobe bore, or radial tilting pad
Options:
Electric insulation, lubricant circulation system, hydrostatic jacking
Accessories:
Temperature monitoring with PT100, prepped for vibration/speed sensor
RENK軸承常見型號 RENK SLIDE BEARING
SIZE EM Series EF Series
自潤滑滑動軸承 獨立油潤滑滑動軸承 自潤滑滑動軸承 獨立油潤滑滑動軸承
natural cooling external oil cooling natural cooling external oil cooling
9 EMNLB 9-80 EMZLB 09-080 EFNLB 9-80 EFZLB 9-80
EMNLB 09S-80 EMZLB 9S-100 EFNLB 9-90 EFZLB 9-90
EMNLB 09S-080 EMZLQ 9-80 EFNLQ 9-80 EFZLB 09-100
EMNLB 9S-080 EMZLQ 09-080 EFNLQ 9-90 EFZLQ 9-80
EMNLB 9-90
EFZLQ 09-90
EMNLQ 9-80
EMNLQ 09-80
11 EMNLB 11-110 EMZLB 11-110 EFNLB 11-090 EFZLB 11-090
EMNLB 11-125 EMZLB 11-125 EFNLB 11-110 EFZLB 11-110
EMNLQ 11-110 EMZLQ 11-110 EFNLB 11-125 EFZLB 11-125
EMNLQ 11-125 EMZLQ 11-125 EFNLQ 11-110 EFZLQ 11-110
EFNLQ 11-125 EFZLQ 11-125
14 EMNLB 14-125 EMZLB 14-125 EFNLB 14-125 EFZLB 14-125
EMNLB 14-140 EMZLB 14-140 EFNLB 14-140 EFZLB 14-140
EMNLQ 14-125 EMZLQ 14-125 EFNLQ 14-125 EFZLQ 14-125
EMNLQ 14-140 EMZLQ 14-140 EFNLQ 14-140 EFZLQ 14-140
18 EMNLB 18-160 EMZLB 18-160 EFNLB 18-160 EFZLB 18-160
EMNLB 18-180 EMZLB 18-180 EFNLB 18-180 EFZLB 18-180
EMNLB 18-200 EMZLB 18-200 EFNLB 18-200 EFZLB 18-200
EMNLQ 18-160 EMZLQ 18-160 EFNLQ 18-160 EFZLQ 18-160
EMNLQ 18-180 EMZLQ 18-180 EFNLQ 18-180 EFZLQ 18-180
EMNLQ 18-200 EMNLQ 18-200 EFNLQ 18-200 EFZLQ 18-200
22 EMNLB 22-200 EMZLB 22-200 EFNLB 22-200 EFZLB 22-200
EMNLB 22-225 EMZLB 22-225 EFNLB 22-225 EFZLB 22-225
EMNLB 22-250 EMZLB 22-250 EFNLB 22-250 EFZLB 22-250
EMNLB 22-280 EMZLB 22-280 EFNLB 22-280 EFZLB 22-280
EMNLB 22-300 EMZLB 22-300 EFNLB 22-300 EFZLB 22-300
EMNLQ 22-200 EMNLQ 22-200 EFNLQ 22-200 EFZLQ 22-200
EMNLQ 22-225 EMNLQ 22-225 EFNLQ 22-225 EFZLQ 22-225
EMNLQ 22-250 EMNLQ 22-250 EFNLQ 22-250 EFZLQ 22-250
EMNLQ 22-280 EMNLQ 22-280 EFNLQ 22-280 EFZLQ 22-280
EMNLQ 22-300 EMNLQ 22-300 EFNLQ 22-300 EFZLQ 22-300
28 EMNLB 28-250 EMZLB 28-250 EFNLB 28-250 EFZLB 28-250
EMNLB 28-280 EMZLB 28-280 EFNLB 28-280 EFZLB 28-280
EMNLB 28-300 EMZLB 28-300 EFNLB 28-300 EFZLB 28-300
EMNLB 28-315 EMZLB 28-315 EFNLB 28-315 EFZLB 28-315
EMNLB 28-335 EMZLB 28-335 EFNLB 28-335 EFZLB 28-335
EMNLB 28-355 EMZLB 28-355 EFNLB 28-355 EFZLB 28-355
EMNLQ 28-250 EMNLQ 28-250 EFNLQ 28-250 EFZLQ 28-250
EMNLQ 28-280 EMNLQ 28-280 EFNLQ 28-280 EFZLQ 28-280
EMNLQ 28-300 EMNLQ 28-300 EFNLQ 28-300 EFZLQ 28-300
EMNLQ 28-315 EMNLQ 28-315 EFNLQ 28-315 EFZLQ 28-315
EMNLQ 28-335 EMNLQ 28-335 EFNLQ 28-335 EFZLQ 28-335
EMNLQ 28-355 EMNLQ 28-355 EFNLQ 28-355 EFZLQ 28-355
